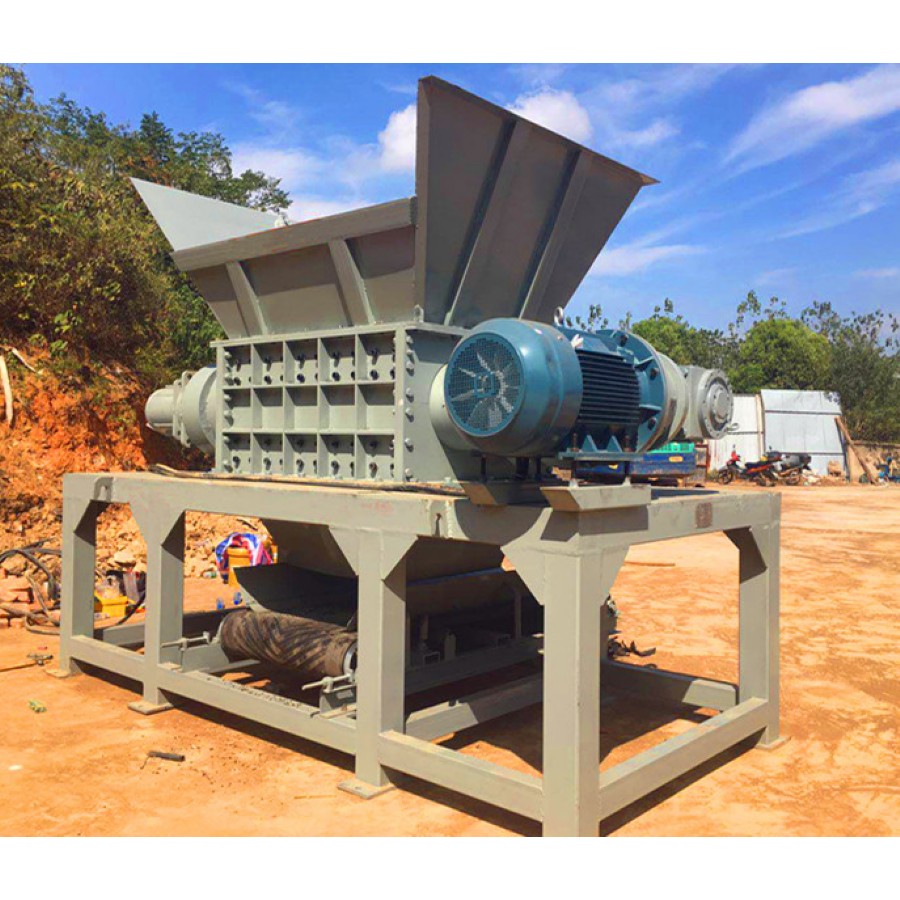

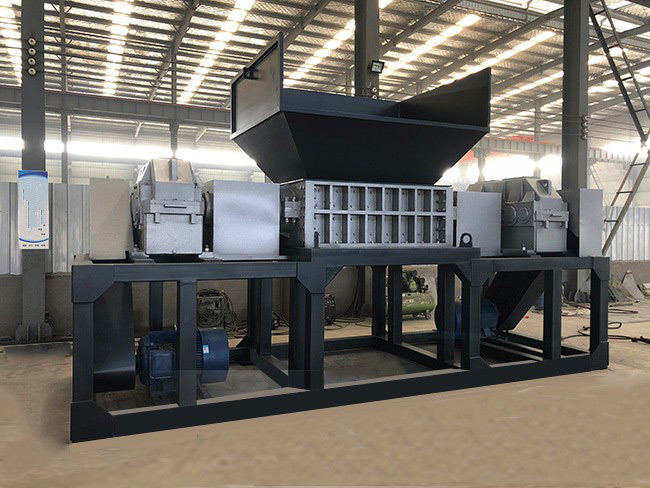

Steel bucket shredder is specially used to shred big size steel bucket into pieces, also named steel drum shredder, it belongs to double shaft shredder (two shaft shredder). According to different waste materials, it includes: paint bucket shredder, paint kettle shredder, gas tank (cylinder) shredder, iron barrel shredder, steel packing bucket shredder, tin box shredder, steel package shredder, gasoline drum shredder, fuel tank shredder, oil barrel shredder, radiator shredder, steel waste shredder, and so on.
The main working parts of the two shaft shredder is a pair of relatively rotating rollers, which are equipped with helical gear cutters. When the material enters the machine, it is torn and sheared by high hardness wear-resistant material with staggered rotation, and then split, crushed into smaller size, which is forcibly discharged.
1.Heavy removable blade, high-efficient crushing rate, knife made by special material, firm and long-life.
2.Thick frame can resist high torque firmly.
3.Low speed,big torque,low noise,less dust.
4.Easy adjustment,low maintenance fee and durable.
5.Knife thickness and blade quantity depend on different material.
Technical data for different models twin shaft shredder | ||||||
Model
| Knife Size (mm) | Power（kw） | Capacity（t/h） | Knife Quantity（pcs） | Machine Size L*W*H（m） | Weight (ton) |
800 （6-12teeth） | Φ300×20 | 15×2 | 0.8-1.2 | 40 | 3×1.2×2.2 | 3 |
Φ300×30 | 18.5×2 | 1-1.5 | 26 | 3×1.2×2.2 | 3.5 | |
Φ300×40 | 22×2 | 1.5-2 | 20 | 3×1.2×2.2 | 5 | |
1000 （6-12teeth） | Φ300×30 | 30×2 | 1.5-2 | 20 | 3.4×1.25×2.2 | 6 |
Φ300×40 | 37×2 | 1.8-2.5 | 24 | 3.4×1.25×2.2 | 6.3 | |
Φ400×40 | 37×2 | 2-2.5 | 24 | 3.4×1.25×2.2 | 6.5 | |
1200 （6-18teeth） | Φ300×40 | 45×2 | 2.5-3 | 30 | 3.8×1.25×2.2 | 8 |
Φ400×40 | 45×2 | 2.8-3.3 | 30 | 3.8×1.25×2.2 | 8.5 | |
Φ500×40 | 55×2 | 3-3.5 | 30 | 3.8×1.25×2.2 | 9 | |
