Glass bottle crusher is specially used to crush the glass into small pieces. According to different kinds of glass, it includes: glass bottle crusher, wine bottle crusher, vial crusher, carafe crusher, burgundy bottle crusher, automotive glass crusher, plate glass crusher, glass brick crusher, cullet crusher, and so on.

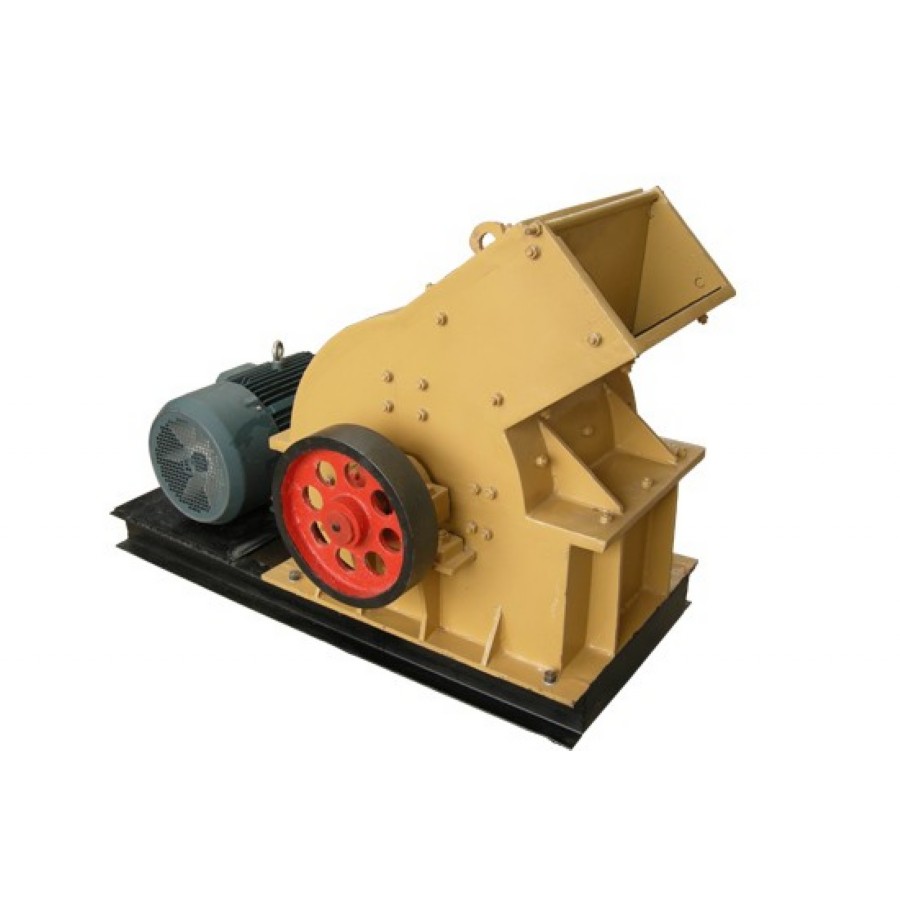

Glass crusher has two models for choice: one is hammer crusher, its output size is smaller and also include powder; the other is jaw crusher, its output size can be big for customer choice.
All the glass crusher machine has the advantages of simple structure, large crushing ratio and high production efficiency, which can break both dry and wet forms. It can adjust grate strip gap according to user's requirement,change the size of the material, this can meet the different needs of different users.
Jaw Crusher Specification | ||||||
Model | Max. Feeding Size (mm) | Discharge Size (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) | Weight (t) |
PE150×250 | 125 | 10-40 | 1-3 | 5.5 | 720×660×850 | 0.8 |
PE250×400 | 200 | 20-60 | 5-20 | 15 | 1150×1275×1250 | 3 |
PE400×600 | 350 | 40-100 | 15-60 | 30 | 1700×1750×1653 | 6.5 |
PE500×750 | 425 | 50-100 | 40-110 | 55 | 2050×1921×2000 | 10.3 |
PE600×900 | 480 | 65-160 | 90--180 | 55 | 2300×2206×2370 | 16.5 |
Hammer Crusher Specification | ||||||
PC300×200 | 100*200 | 80 | 2-5 | 5.5 | 700 × 750 × 800 | 0 .32 |
PC400×300 | 145×295 | 100 | 5-8 | 7.5 | 844×942×878 | 0.9 |
PC600×400 | 295×450 | 100 | 10-12 | 18.5 | 1000×1000×1300 | 1.5 |
PC600×600 | 295×570 | 100 | 12-18 | 45 | 1315×840×1501 | 2.14 |
PC800×600 | 350×570 | 120 | 20-25 | 55 | 1515×2586×1040 | 2.45 |
PC800×800 | 350×850 | 120 | 35-45 | 55 | 1515×2831×1040 | 3.05 |
