Aluminium Alloy Cans Crusher is specially used to crush waste cans into small pieces, also named metal crusher. According to different metal scraps, it includes: ring-pull can crusher, pop-top can crusher, zip-top can crusher, iron box crusher, metal tins crusher, and so on.

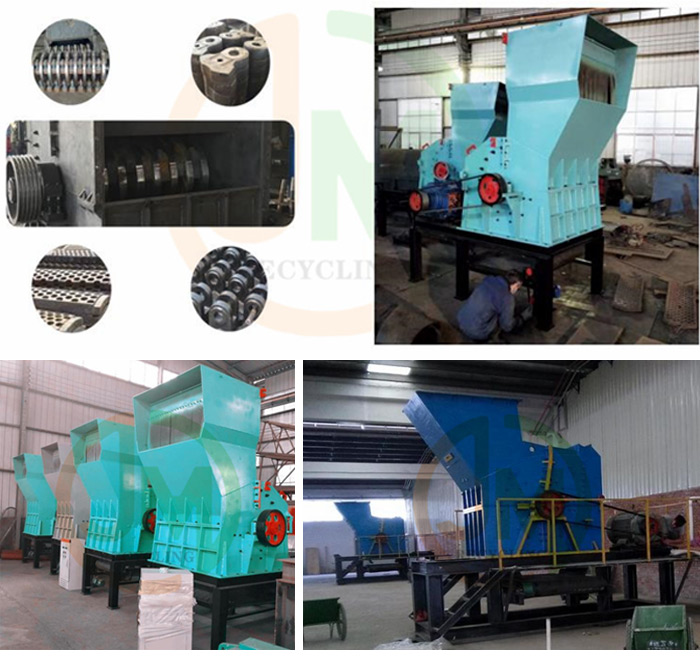

Scrap Metal Crusher Machine uses the basic principle of hammer hitting, upper feeding inlet with filtering belt is driven by high speed and big torque motor, hammer in the main rotor hits the material which is entering crusher chamber in turn and shreds the material into regular one.
1. The blade is a meshing blade made of high alloy, which has a good crusher effect on any high hardness material.
2. Driven by a geared motor, it saves 20% of electricity compared to other crusher.
3. Less noise.
4.Dense stiffener plate to ensure the strength of the box.
5. Conveyor belt feeding equipment can be configured as needed.
6, Automatic control makes the control easier, the entire smashing process only needs one person.
Specification and Technical Parameter | |||||
Model | Power (kw) | Rotation rate (r/min) | Production capacity (kg/h) | Size (mm) | Weight (ton) |
MC-600 | 18.5-22 | 2100 | 600-800 | 2000*700*2000 | 1.5 |
MC-800 | 30-37 | 1600 | 800-1200 | 2200*900*2200 | 3.7 |
MC-1000 | 45-55 | 1250 | 1200-1500 | 3800*1400*3000 | 7.6 |
MC-1400 | 90-150 | 860 | 4000-5000 | 4000*1500*2800 | 11.5 |
MC-1600 | 110-180 | 750 | 6000-10000 | 4800*2000*3200 | 16.6 |
MC-2000 | 220-320 | 650 | 8000-12000 | 5000*2200*3400 | 28.6 |
