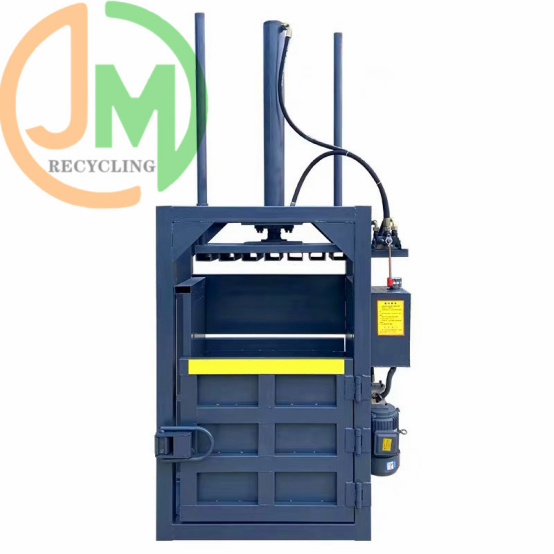

Small Size Vertical Type Steel Bucket Baler Machine is also named petrol drum baling machine, widely used for baling gasoline can,paint bucket, steel bucket, etc. It is designed as vertical structure, hydraulic transmission, electrical control and manual binding.Usually the pressure force of this series is from 10 ton KN to 60 ton KN, the efficiency is 4 ~ 6 pieces per hour. The weight of each piece is from 30 Kg to 300 Kg according to the material.Also, we can produce the machine according to the requirement from customer.
Features:
* U-type balance device which avoid inappropriate accidents from placing materials.
* The feed opening uses up-down moving door, save place and convenient to feed the material.
* Safety interlocks, bales out automatically.
* The machine is suitable for compressing waste paper box, carton, film, tatter etc.
* Work with high efficiency, low energy consumption.
* Oil pipe joint adopts conical without gasket form, no oil leakage phenomenon.
Model | Force (ton) | Bale size (mm) | Bale weight(kg) | Efficiency (bale/hour) | Power (kw) | Machine Weight(KG) | Size (mm) |
JM10 | 10 | 600*400 | 30-50 | 4-6 | 2.2 | 1000 | 900*650*2100 |
JM20 | 20 | 800*600 | 80-100 | 4-6 | 4 | 1100 | 1000*750*2750 |
JM30 | 30 | 800*600 | 100-130 | 4-6 | 5.5 | 1300 | 1000*750*2750 |
JM40 | 40 | 1200*780 | 200-240 | 4-6 | 7.5 | 2050 | 1600*1050*3300 |
JM50 | 50 | 1200*800 | 320-350 | 4-6 | 11 | 2600 | 1600*1050*3300 |
JM60 | 60 | 1200*800 | 380-420 | 4-6 | 15 | 2900 | 1600*1050*3300 |
JM80 | 80 | 1200*800 | 450-480 | 4-6 | 15 | 3300 | 1600*1050*3300 |

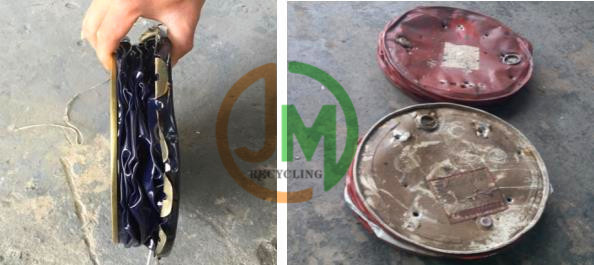

After Baling
